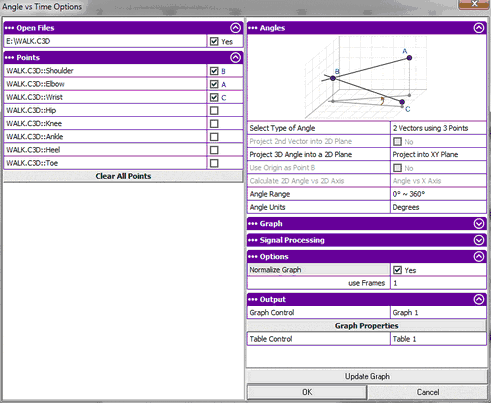

Type of Angle
|
2 Vectors using 4 Points
2 Vectors using 3 Points
1 Vector using 2 Points
|
Project 2nd Vector into a
2D Plane
|
This will project the 3D vector into a 2D plane to create a 2nd vector. Only available in 3D
|
Prject 3D Angle into a
2D Plane
|
Project 3D angle into a 2D plane to create a 2D angle
|
Use Origin as Point B
|
Use Origin as Point B. This will use Origin as one of the points of the projected vector.
|
Calculate 2D Angle vs 2D
Axis
|
This will calculate the 2D angle between a vector and a 2D axis
|
Angle Range
|
Can be either -180 to +180 Degrees or 0 to 360 Degrees
|
Angle Units
|
Angle Units. Can be Degrees, Radians or Gradians
|
Normalize Graph
|
This will calculate the average of the specified number of frames starting with frame 1 and then subtract this from every frame. This will result in the change of motion instead of absolute motion.
|
