Function Toolbar

Function Toolbar - Lite & Standard Editions

The Function Toolbar lets you define shortcuts to MaxTRAQ scripts and external programs such as Excel etc. To define the functions, use Tools-Options and select the Function Bar page. The functions can be invoked by using the Function Toolbar or a shortcut key. You can assign a bitmap to use as an icon in the toolbar. This bitmap should be a bmp file with a 18x20 resolution.

Example of Function Toolbar with 3 functions assigned

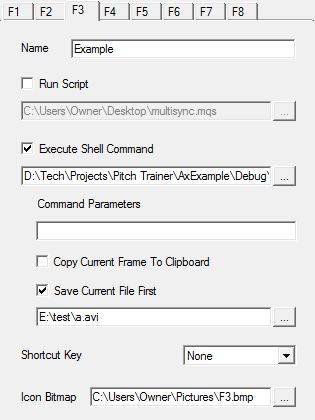

Use the Function Bar options page to define the functions.

FuncBarSetup

Name	The name of the function. This name will also be used as the toolbar tool tip.

Run Script

Run the specified MaxTRAQ script..

Execute Shell Command

Runs an external application or opens a document using the assigned program. For example, you can specify index.htm as the shell command and it will open in your default browser.

Command Parameters

Any parameters to pass to the external application..

Copy Current Frame to Clipboard

This will copy the current video frame (tracker mode only) to the clipboard so that you can paste it into a document.

Save Current File First

Saves the current file before running the external application.

Shortcut Key

Specifies a shortcut key.

Icon Bitmap

Bitmap for the button icon. this must be a bmp file with a 18x20 resolution.
