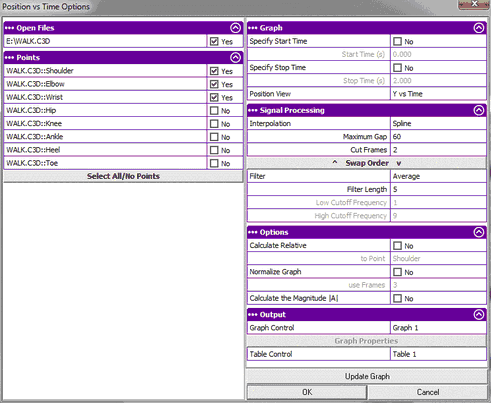

The Position vs Time Analysis allows you to graph the X, Y or Z movement of the points over time.
![PositionVsTime](positionvstime.zoom66.png)
Position Time Analysis Options
|
Calculate Relative
|
This will subtract the motion of the selected point, i.e. translate the motion to selected point.
|
Normalize Graph
|
This will calculate the average of the specified number of frames starting with frame 1 and then subtract this from every frame. This will result in the change of motion instead of absolute motion.
|
Calculate the Magnitude |A|
|
This will calculate the sqrt( x2 + y2 + z2 ) or sqrt( x2 + y2 ) in case of 2D of the position.
|
|
