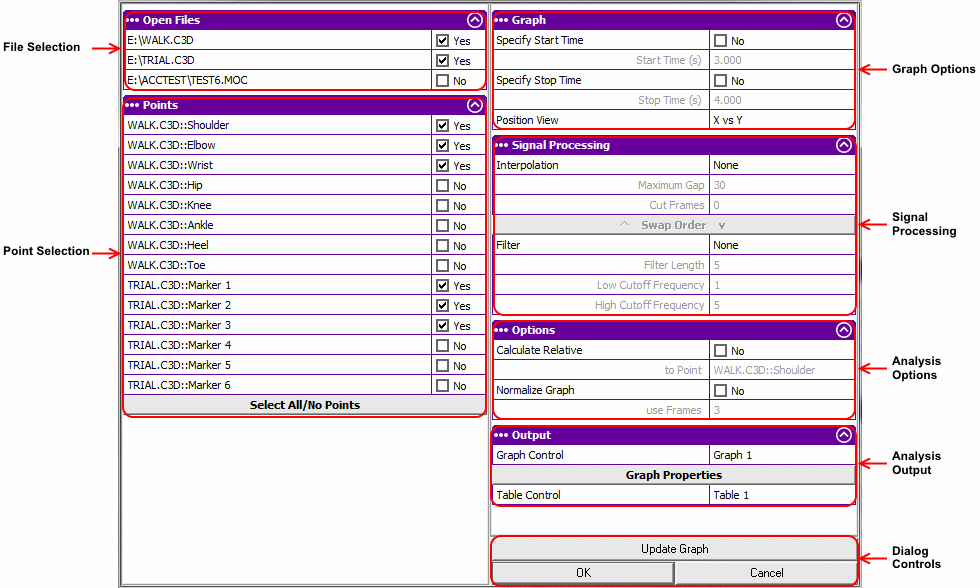

File Selection
|
The section contains the currently opened files with the selected files checked. You can check and uncheck any files. The points in the file will be displayed the the Point Selection.
|
Point Selection
|
Select points from the Point Selection list. You can select or unselect all points by using the "Select All/No Points" button.
|
Graph Options
|
You can select the range that you want to analysis here as well as select the initial view if available.
|
Signal Processing
|
The Signal Processing section allows you to select filtering and interpolation options. Use the Swap Order button if you prefer to filter before interpolating.
|
Analysis Options
|
The analysis option section contains the various options for the selected analysis.
|
Analysis Output
|
Here you select what type of output you want to display. The available outputs will depend on the Analysis Template that was selected. You can change the how the Analysis Template is selected in the MaxA Options Dialog
|
Dialog Controls
|
Use "Update Graph" to update the Analysis with the current selection. To close the Analysis Dialog and the Analysis Template, select "Cancel"
|
