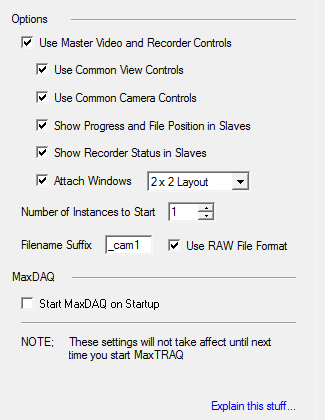

You can change the behavior of the MultiView feature from the MaxTRAQ Options dialog box.
Note that these settings will not take affect until next time you start MaxTRAQ
| Use Master Control | This allows you to control all the instances from the Master instance. The master is always the first instance started. Close and Exit are disabled on the slave instances when this option is active. |
| Use Common View Controls | Display or Hide view objects from the Master instance. If this is not enabled, you can override this by holding down the CTRL key while toggling view controls to view or hide objects from Master instance. |
| Use Common Camera Controls | Control Video Resolution and Frame Rate from the Master instance. |
| Show Progress and File | Show the tracker progress and file position bars in the slaves. |
| Show Recorder Status | Show the recorder progress and status in the slaves. |
| Attach Windows | If checked, then each instance of the MaxTRAQ application will be attached, moved and sized together. |
| Use RAW File Format | Use the RAW file format when saving a MultiView file instead of AVI format. the RAW file format is generally faster and is recommended unless you need AVI format. |
| Number of Instances to Start | If you always want to start more than one instance then set the number of instances you want. This is useful if you always use multiple cameras. |
| Filename Suffix | This suffix will be added to the filename from each camera. This is very useful when you have Master Control active and you only save the files from the master instance. |
|
